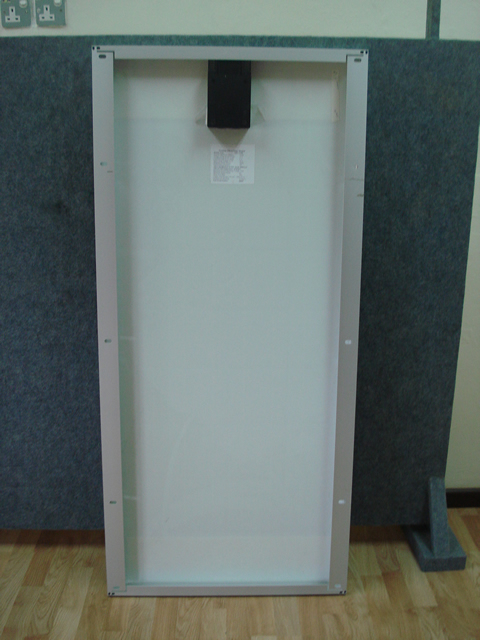

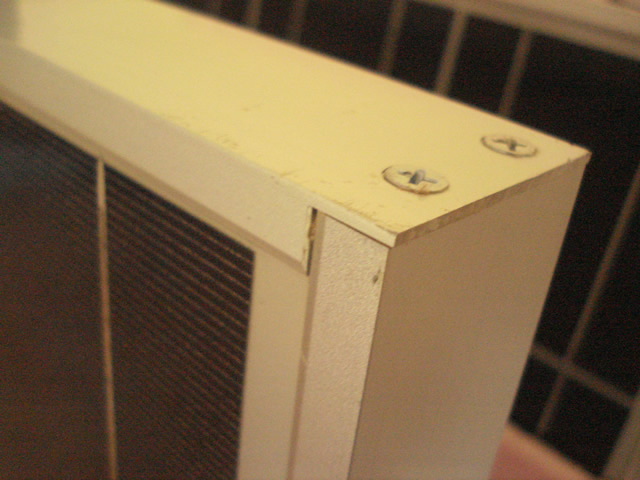

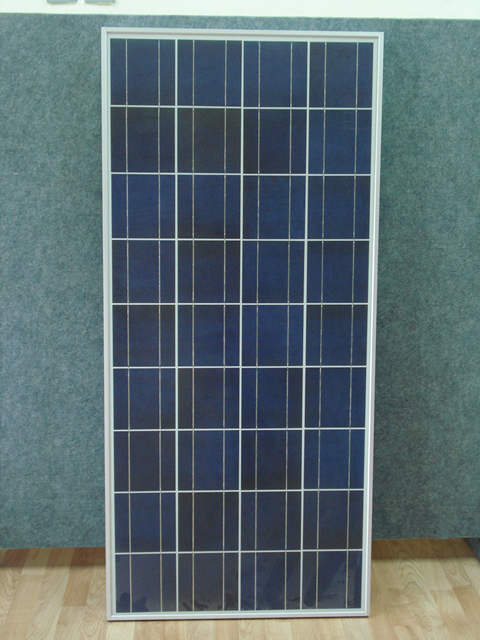

SolarTIF produces high quality ploy-crystalline Photovoltaic Modules ranging from 20-180W.
SPECIFICATIONS
180W
110W
Maximum PowerVoltage (Vpm)
35.40V
17.4V
Maximum PowerCurrent (Ipm)
5.08
6A
Open Circuit Voltage (Voc)
44.60
21.9V
Short Circuit Current (Isc)
5.42
6.97A
CellType
Poly
Poly
Nominal Voltage
24Vdc
12Vdc
Maximum SystemVoltage
DC 1000 V
DC 1000 V
SeriesFuse Rating
10A
10A
Performance Tolerance
+- 5%
+- 5%
Module Net Weight : Approximately 13 kg
Module size (mm) : 1465 x 660 x 45mm
Carton size (mm) : 1500 x 700 x 85mm
2. Solar LED Street Light Series
Our Solar LED Street Light Series is designed to meet the stringent requirement by the end-users. The light gives better illumination and longer lifespan (i.e 15,000 hours). Effective Working per day is for 10 hours with a 3-4 backup days. The lamp post and the bracket are designed to withstand rigorous weather especially in Malaysia weather condition.
STF-L3: (2 – 3m-height Lamp Post)
6W LED lamp
25W Solar panel
12v/30Ah battery
12v/10A controller
STF-L4: (3 – 4m height Lamp Post)
12W LED lamp
50W Solar panel
12V/55Ah battery
12V/10A controller
STF-L5: (4 – 5m height Lamp Post)
18W LED lamp
75W Solar panel
12V/80Ah battery
12V/10A controller
STF-L6: (5 – 6m height Lamp Post)
30W LED lamp
125W solar panel
12V/150Ah battery
12V/10A controller
STF-L8: (6 – 8m height Lamp Post)
60W LED lamp
250W solar panel
24V/150Ah battery
24V/10A controller
3. Solar Thermal

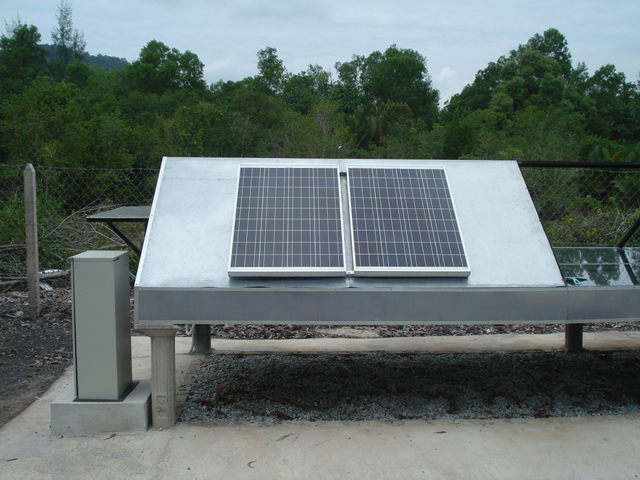

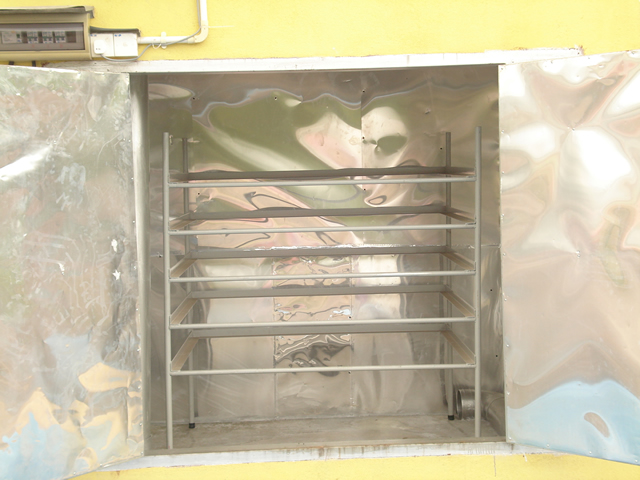

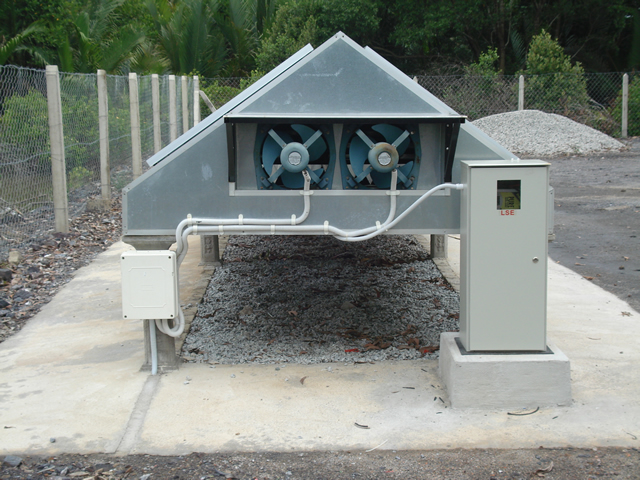

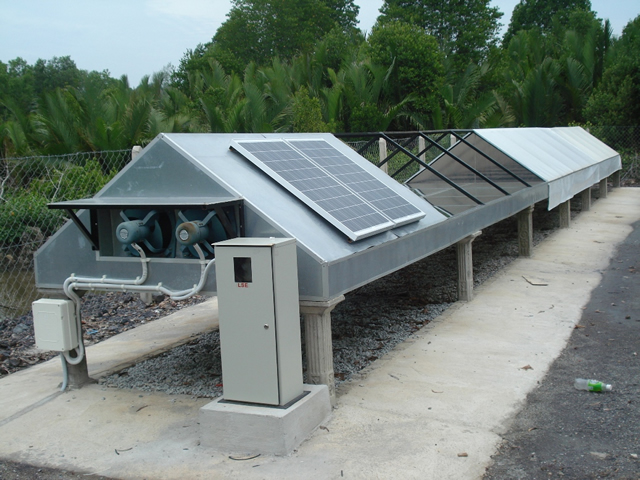

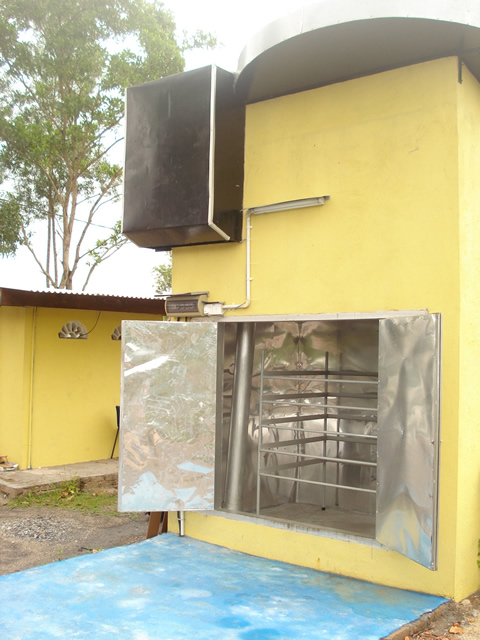

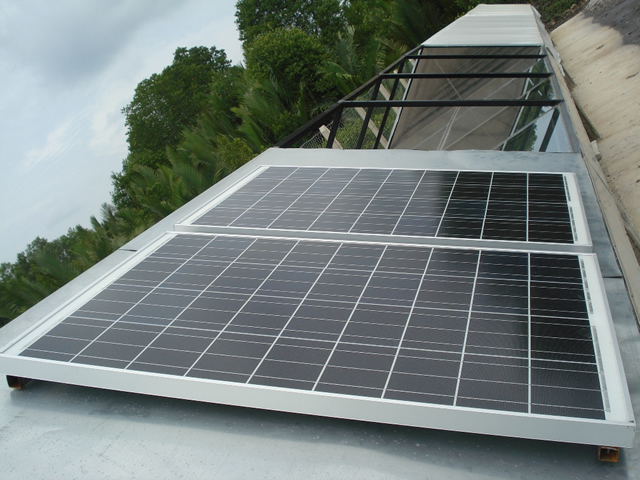

Solar Tunnel Drier and V-groove are types of solar thermal system. The system generates heat by absorbing sunlight. The hot air will then been transfered to drying section for drying purposes.
